TT 100-TG23H Tour Guide System

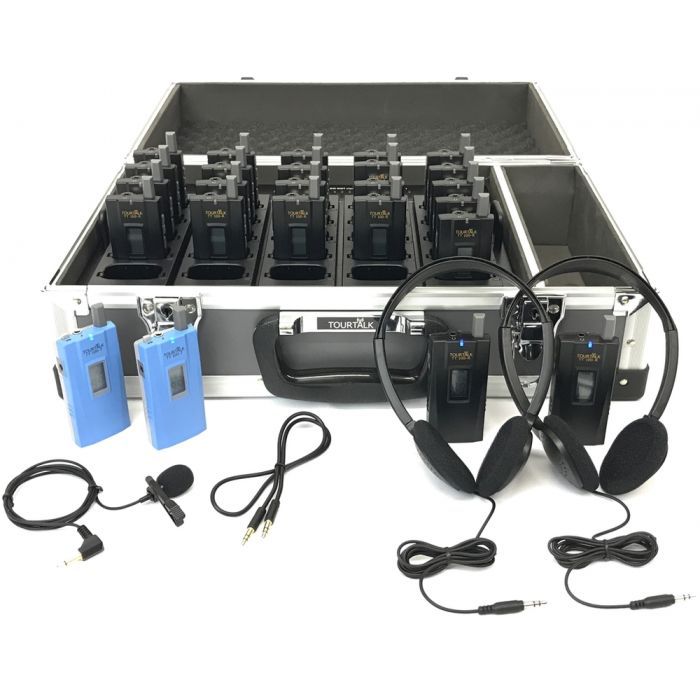

The Tourtalk TT 100-TG23H is a complete digital tour guide system comprising 2 transmitters with lapel microphones (for the presenters), 23 receivers with headphones (for the audience) and a charger transport case.

A tour guide system is a portable wireless audio system that is used to enable tour guides to be heard clearly in noisy environments or over distance. The TT 100 system allows up to two tour guides (in dual presenter mode) to communicate simultaneously to the same group.

Alternatively, the tour guide can use one transmitter, and pass the other transmitter for question and answer sessions or interviews (using its integrated microphone), ensuring everybody hears what is said.

The two transmitters can also be set to different channels to split the receivers into two separate tour groups.

Each transmitter features a microphone socket (to connect the lapel microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The guide/s can then speak at a comfortable level without having to shout. They can even whisper if the tour is in a noise sensitive area e.g. Museum.

The audience wear the headphones (connected to the receivers) and simply adjust their own volume to a comfortable level.

Both the transmitter and receivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 25 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk tour guide system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

This Tourtalk TT 100 tour guide system is ideal for guided tours, simultaneous interpretation, audio description, hearing support, job/sports training, silent commentary and many more applications.

A wide range of accessories are available.

Delivery Includes

2 TT 100-T tour guide transmitter
2 TT-LM lapel microphone
2 TT-AI aux-in lead
23 TT 100-R tour guide receivers
23 TT-SEP earphones
23 TT-HP lightweight headphones
25 TT-RB1 rechargeable batteries
25 TT-LA lanyards
1 TT-C25 charger transport case

Technical Data

TT 100-T Transmitter
Frequency range: 2.4 GHz
Channels: 100
Transmission power: ≤10mW
Transmission range: ≤ 30m (where local conditions allow)
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 100-R Receiver
Frequency range: 2.4 GHz
Channels: 100
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-25 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 25 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2500 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 5.2kg
Operating temperature: 0 – 40 °C

Features and specifications subject to change without notice
