TT 100-TGC14MH Tour Guide System

Complete lightweight tour guide system with charger transport case
Quick charging batteries for transmitters and receivers
Integrated microphone, microphone socket and an aux-in socket on transmitter
Microphone mute switch with status LED
Headband microphone for the guide
Receivers supplied with lightweight headphones
Wireless channel sync from transmitter to receivers
100 Selectable licence-free channels
Lockable channel feature for reliability
Single AA battery operation
Clear LCD with battery status, presenter mode and channel number

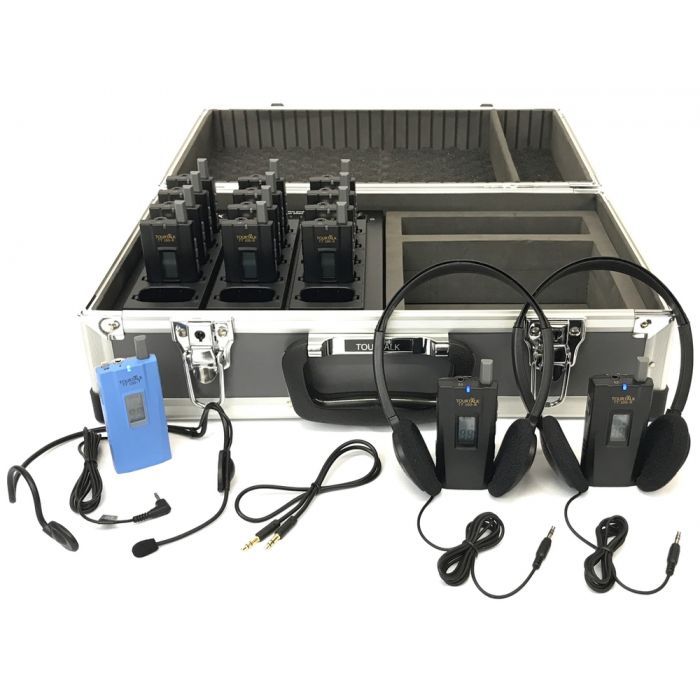

The Tourtalk TT 100-TGC14MH is a complete digital tour guide system comprising 1 transmitter with headband microphone (for the presenter), 14 receivers with headphones (for the audience) and a charger transport case.

A tour guide system is a portable wireless audio system that is used to enable a tour guide to be heard clearly in a noisy environment or over distance.

The transmitter features an integrated microphone, microphone socket (to connect the headband microphone), and microphone mute switch. An aux-in socket to enable the connection of a smartphone is also provided.

The guide can then speak at a comfortable level without having to shout. They can even whisper if the tour is a noise sensitive area e.g. Museum.

The audience wear the headphones (connected to the receivers) and simply adjust their own volume to a comfortable level.

Both the transmitter and receivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 15 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk tour guide system has been designed to be very user friendly and can be setup within minutes. As the system is completely wireless it can be operated indoors or outdoors and requires no installation.

This Tourtalk TT 100 tour guide system is ideal for guided tours, simultaneous interpretation, audio description, hearing support, job/sports training, silent commentary and many more applications.

A wide range of accessories are available.

Delivery Includes

1 TT 100-T tour guide transmitter
1 TT-HM headband microphone
1 TT-LM lapel microphone
1 TT-AI aux-in lead
14 TT 100-R tour guide receivers
14 TT-SEP earphones
14 TT-HP lightweight headphones
15 TT-RB1 rechargeable batteries
15 TT-LA lanyards
1 TT-C15 charger transport case

Technical Data

TT 100-T Transmitter
Frequency range: 2.4 GHz
Channels: 100
Transmission power: ≤10mW
Transmission range: ≤ 30m (where local conditions allow)
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 100-R Receiver
Frequency range: 2.4 GHz
Channels: 100
Power supply: 1 x AA battery
Typical battery life: 10/11hrs NiMh/Alkaline
Dimension (mm): 24 x 41 x 102
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-15 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 15 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2600 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 4.6kg
Operating temperature: 0 – 40 °C
