TT 40-SI23M Interpretation System

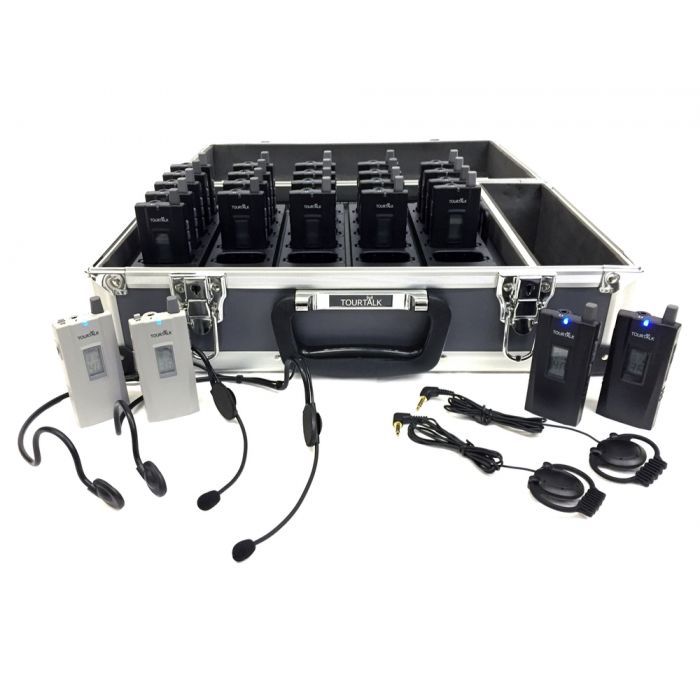

The Tourtalk TT 40-SI23M is a complete 2 language interpretation system comprising 2 transmitters with headband microphones (for the interpreters), 23 receivers with single earphones (for the delegates) and a charger transport case.

Each transmitter features an integrated microphone and microphone socket, microphone mute ‘cough’ switch, and an aux-in socket to enable the connection of a conference system.

The receivers feature a headphone socket and volume control.

Both the transmitters and receivers are supplied complete with belt clips and lanyards for hands-free operation.

The charger transport case simultaneously recharges and stores up to 25 Tourtalk transmitter/receivers. The hard case provides protection during transit and storage, and is small enough to be carried as hand luggage for international travel. The detachable charger tray can either be used within the hard case or used as a desktop charger.

The Tourtalk language interpretation system has been designed to be very user friendly and can be setup within minutes of arriving at a venue. As the system is completely wireless it can be operated indoors or outdoors and requires no installation. This wireless system is ideal for international conferences or as a mobile interpretation system e.g. site tours by foreign visitors.

This system enables two interpreters to translate the floor language .e.g. English to Spanish and English to French. Each delegate can then choose to either listen to either the Spanish interpretation or the French interpretation.

Each interpreter wears a lightweight headband microphone plugged into a transmitter. This sensitive microphone enables the user to whisper their translated message and therefore the system doesn’t require a booth. A ‘cough’ mute switch can be used to mute the microphone at any time.

If each language is to be shared between two interpreters then an (optional) TT-PM plug-in microphone can be used. This enables the transmitter to be handheld and easily passed between the interpreters during the event.

Additional transmitters can be purchased for other interpreters, to enable up to twelve different languages (plus the floor language) to be used simultaneously.

A wide range of accessories are available.

Delivery Includes

2 TT 40-T transmitters
2 TT-HM headband microphones
2 TT-LM lapel microphones
2 TT-AI aux-in leads
23 TT 40-R receivers
23 TT-SEP earphones
25 TT-RB1 rechargeable batteries
25 TT-LA lanyards
1 TT-C25 charger transport case

Technical Data

TT 40-T Transmitter
Frequency range: 863-865MHz
Channels: 40
Transmission power: ≤ 10 mW
Transmission range: ≤ 120m (where local conditions allow)
Power supply: 1 x AA battery
Typical battery life: 9hrs NiMh
Dimension: 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT 40-R Receiver
Frequency range: 863-865MHz
Channels: 40
Power supply: 1 x AA battery
Typical battery life: 12hrs NiMh
Dimension (mm): 24.4mm x 40.5mm x 97.2mm
Weight: 75 g (with battery)
Operating temperature: -10°C – +50 °C
TT C-25 Charger transport case
Power requirements: AC 100-240V, 50/60Hz
Power supply: 12V DC (5A)
Charging docks: 25 transmitters/receivers
Charging current per unit: 430mA max.
Charging time: Approx. 9 hours for a 2500 mAh battery (depending on battery status)
Dimensions: 443mm x 288mm x 174mm
Weight: 5.2kg
Operating temperature: 0 – 40 °C

Features and specifications subject to change without notice
